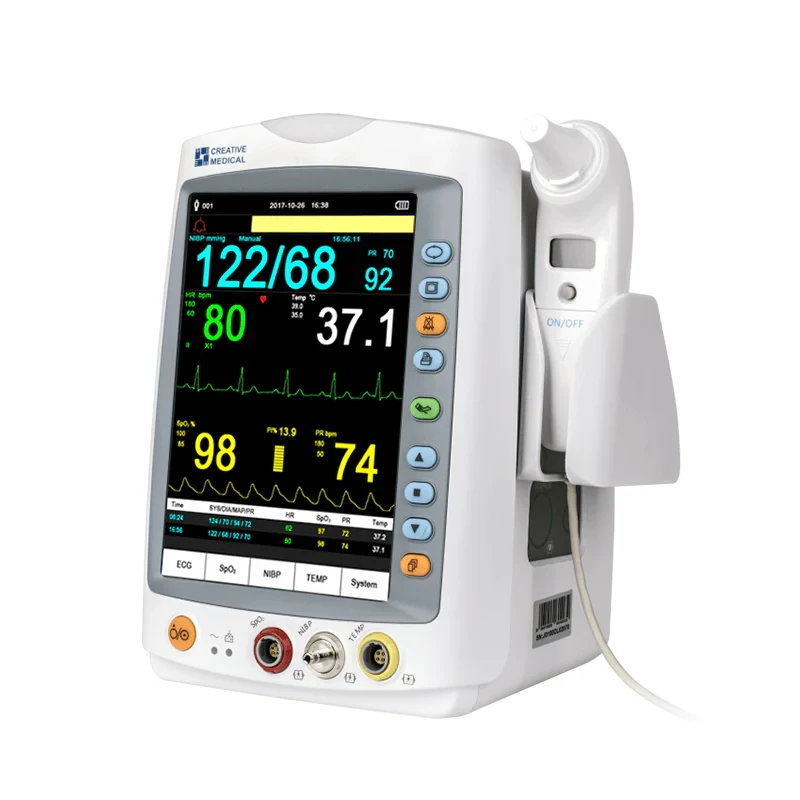

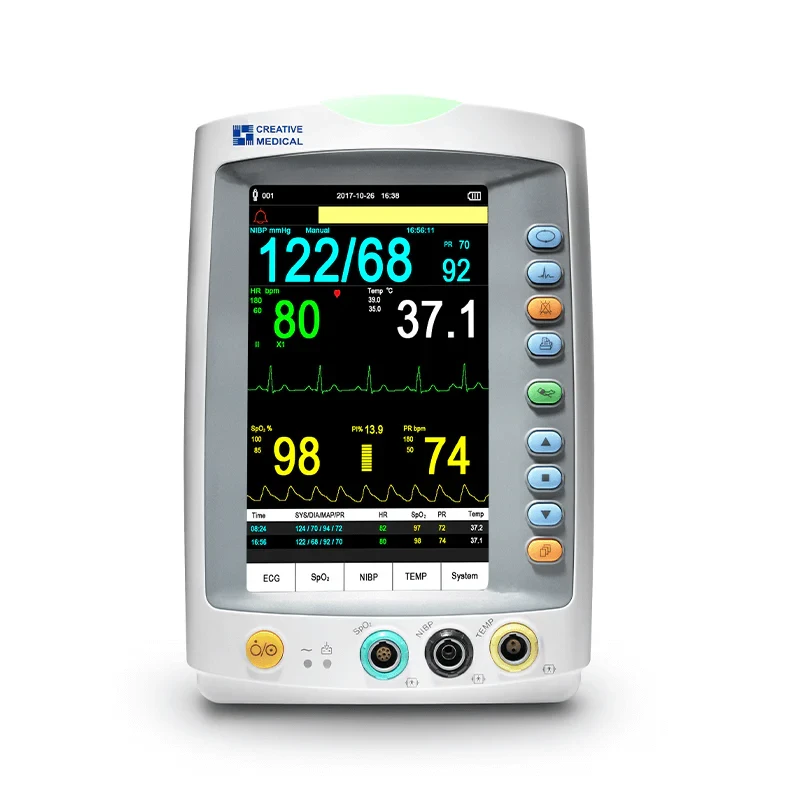

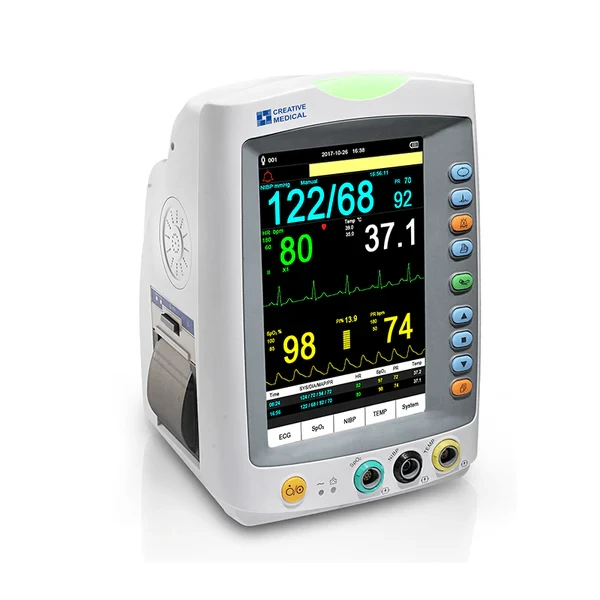

Lepu Creative Medical PC-900Plus All-in-one Vital Signs Monitor Touch Screen

Features:

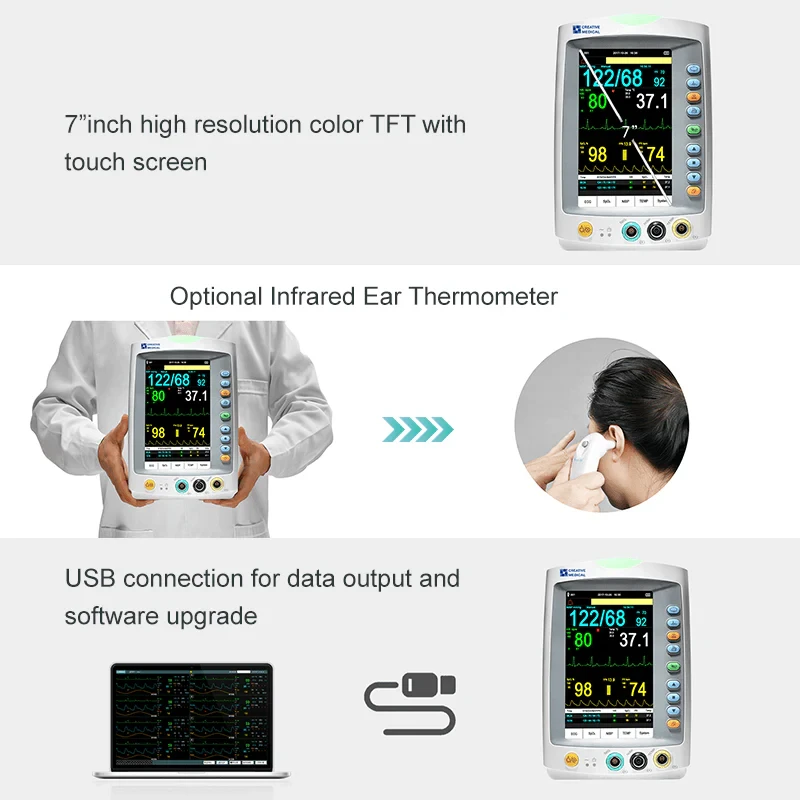

1. 7-inch touch screen of SpO2(Blood Oxygen Saturation), ECG(Electrocardiogram) waveform, PR(Pulse Rate), NIBP(Non-invasive Blood Pressure), Respiration Rate, Temperature, and numeric display
2. Tabletop design with user-friendly operation
3. Up to 12000 groups of NIBP(Non-invasive Blood Pressure), 3000 groups of SpO2, and event record
4. Adopt advanced Lepu MoveOxy® SpO2 anti-motion technology, suitable for monitoring in a variety of weak perfusion occasions
5. Historic data records can be reviewed in waveform, list, or trend graph
6. Data export and software upgrading can be done by USB cable
7. Built-in lithium battery, the working time can reach more than 6 hours
8. Three-level sound and light alarm
9. Flexible configurations among SpO2, NIBP, Temperature, and ECG

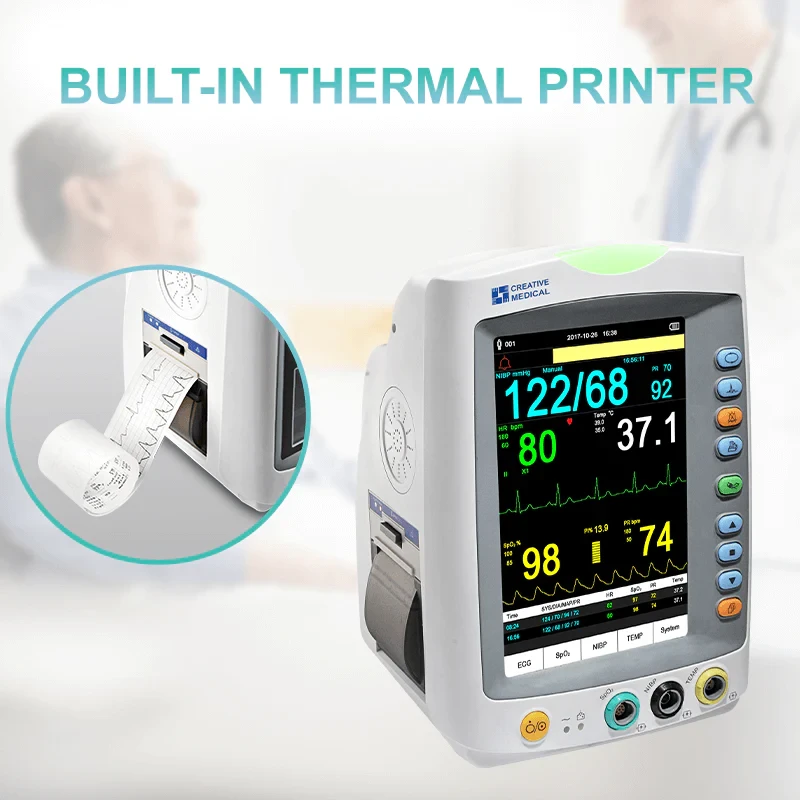

10. Built-in thermal printer for printing parameters and waveforms
11. Support IPX7 silicone soft finger sensor

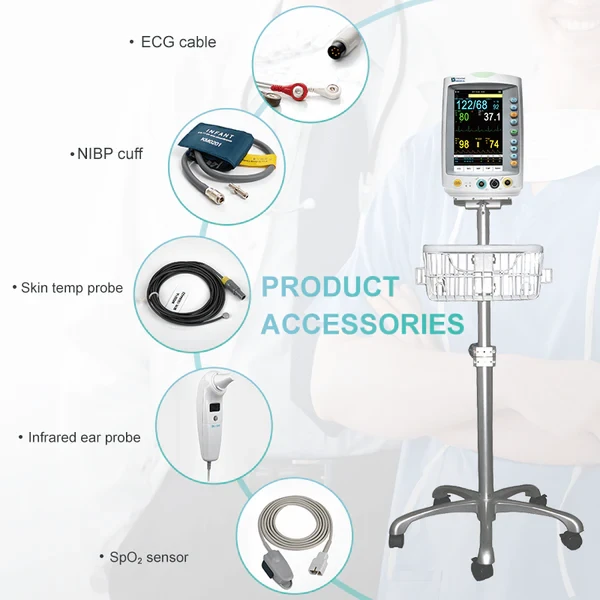

12. Optional configurations: Infrared Ear temp probe, Printer, Clamp, Trolley

Product Details and Specifications:

* Basic Information:

1. Brand: Creative Medical
2. Product Name: Vital Signs Monitor
3. Model: PC-900Plus (Note: PC-900Plus is a model of the PC-900 series)
4. Manufacturer: Lepu Creative Medical
5. Origin: China
6. Warranty Period: 2 Years
7. Service Life: 5 Years (actually can be used longer)

Technical Specifications:

NIBP(Non-invasive Blood Pressure)：

Technique: Oscillometric

Measurement accuracy:

1. Maximum mean difference: ±5 mmHg
2. Maximum standard deviation: 8 mmHg

Systolic pressure:

1. Adult 40mmHg~275mmHg
2. Pediatric 40mmHg~200mmHg
3. Neonate 40mmHg~135mmHg

Diastolic pressure:

1. Adult 10mmHg~210mmHg
2. Pediatric 10mmHg~150mmHg
3. Neonate 10mmHg~95mmHg

Mean arterial pressure:

1. Adult: 20mmHg~230mmHg
2. Pediatric: 20mmHg~165mmHg
3. Neonate: 20mmHg~110mmHg

Measurement mode: Manual, Auto, STAT

Overpressure protection limit:

1. Adult: 300mmHg
2. Pediatric: 240mmHg
3. Neonate: 150mmHg

SpO2(Blood Oxygen Saturation):

1. Transducer: Dual-wavelength LED
2. SpO2 measuring range: 35%~100%
3. SpO2 measuring accuracy: 3% for range from 70% to 100%
4. Low perfusion performance: As low as 0.4%

Pulse Rate(PR):

1. Measuring range: 30bpm~240bpm
2. Measuring accuracy: ±2bpm or ±2%, whichever is greater

ECG(Electrocardiogram):

1. Input dynamic range: ±0.5mVp~±5mVp
2. HR measuring range: 15bpm~350bpm
3. HR measuring accuracy: ±1% or ±2bpm, whichever is greater
4. HR alarm delay time: ≤10s
5. Sensitivity selection: ×1/4, ×1/2, ×1, ×2
6. Sweeping speed: 25mm/s
7. ECG noise level: ≤30µVp-p
8. ECG input loop current: ≤0.1µA
9. Differential input impedance: ≥10MΩ
10. Common-mode rejection ratio: ≥105dB

Temperature:

1. Measuring range: 21.0℃~50.0℃
2. Measuring accuracy: ±0.2℃ for range 25℃~45℃

Other Specifications:

1. Power supply: 100~240Vac, 50/60Hz
2. Built-in battery: 11.1V/4400mAh Li-ion battery
3. Display: 7-inch touch screen

Package Details:

Net Weight: 3.1kg

Package Weight: 6kg

Package Size: 360mm x 320mm x 410mm
